Product overview

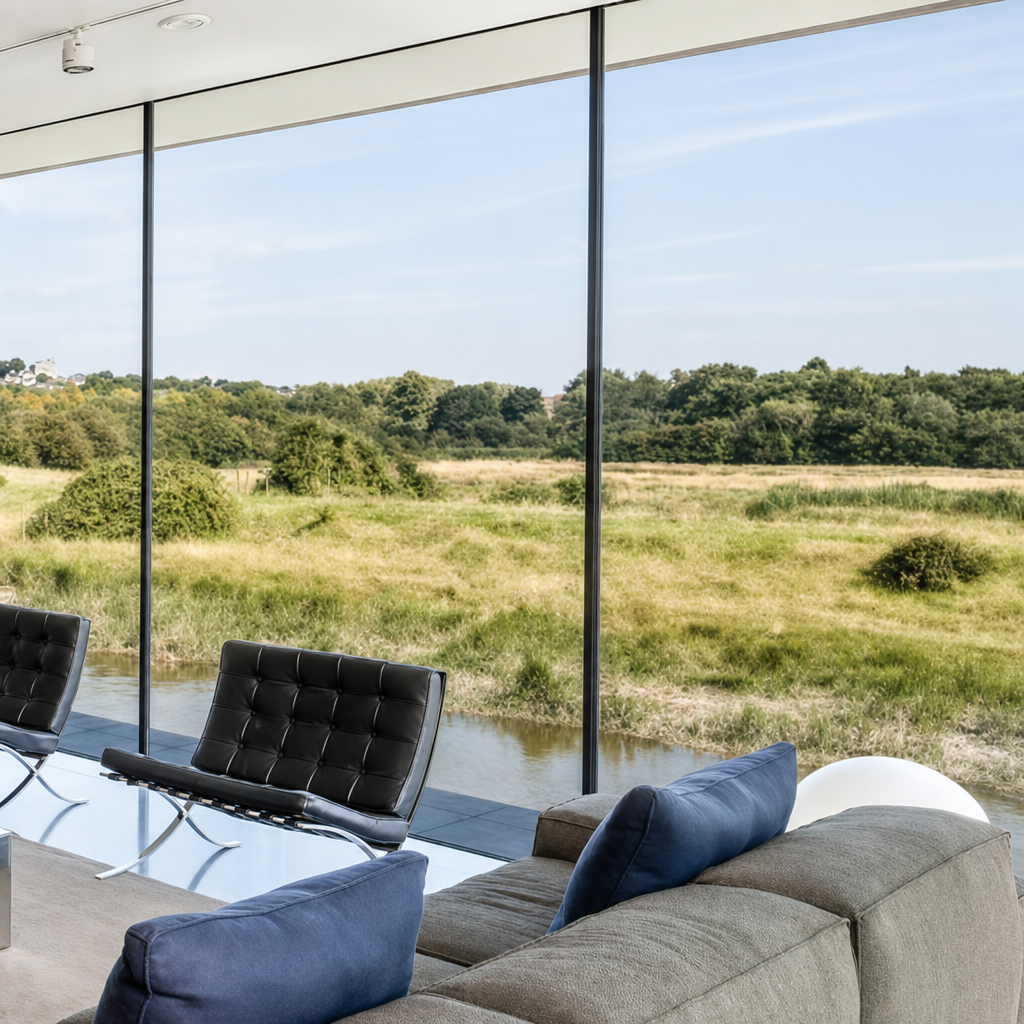

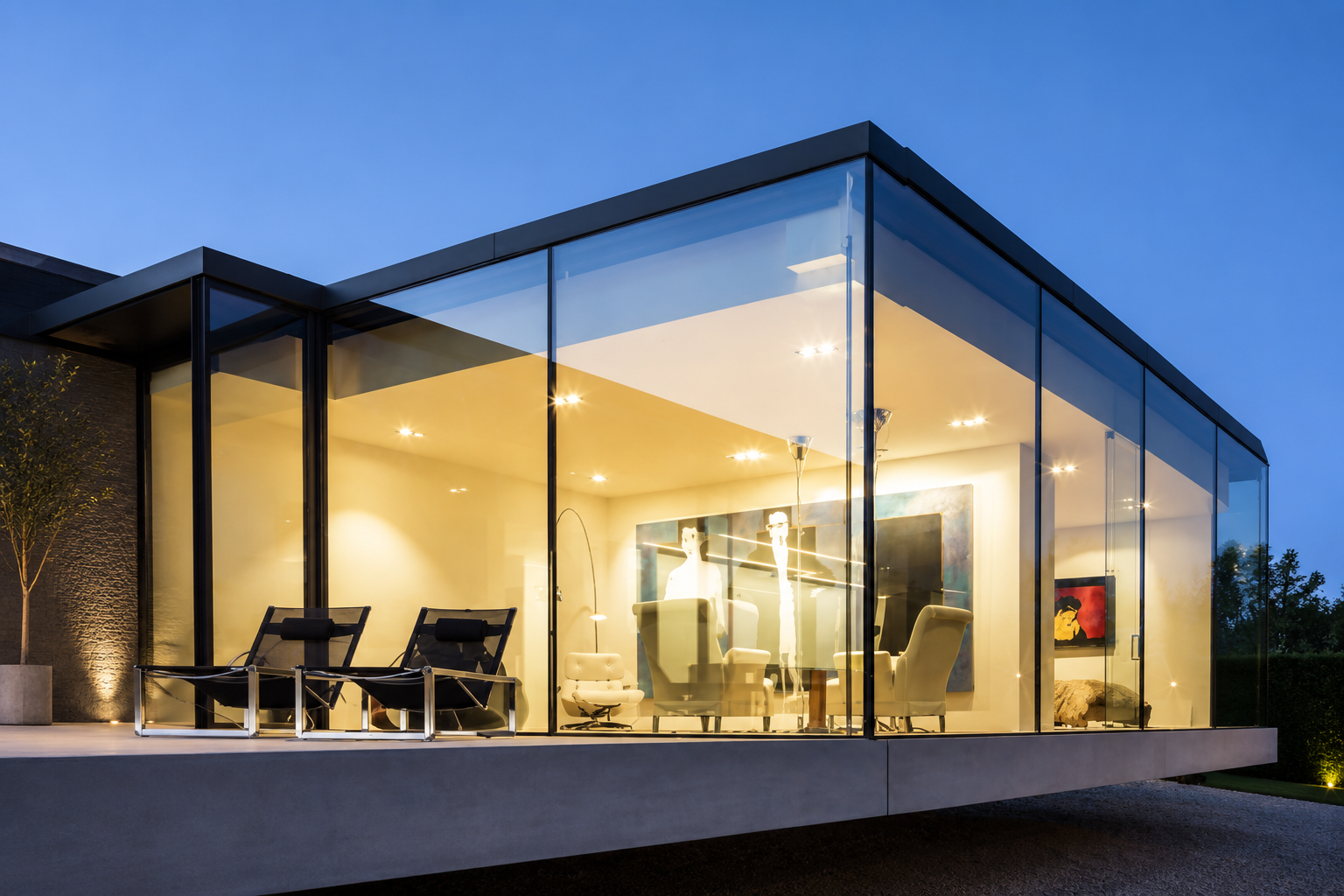

Glass walls create continuous frameless elevations using large structural glass units with minimal visible framing. Using the Invisio thermally broken fixing system, Sieger can design and install glass wall systems that connect to the building structure at the head, base and jambs while keeping the finished appearance clean, transparent and architectural.
Each frameless glass unit can be silicone jointed to the next, creating a large glazed elevation with no visible framing or fixings. This makes glass walls ideal for contemporary homes, extensions, commercial buildings and architectural projects where the aim is to maximise natural light, views and visual connection to the outside.
Sieger Systems supplies and installs frameless glass walls and structural glass systems across London, Buckinghamshire, Berkshire, Oxfordshire, Hertfordshire, Surrey, Bath, Bristol and Somerset.
Premium performance
Bespoke made to order
Designed & made in the UK
PRODUCT FEATURES
Product features
Frameless glass elevation
Thermally broken Invisio system
Large tested openings
Silicone jointed glass
To learn more about additional features:
Technical performance
| System type | Frameless structural glass wall using the Invisio fixing system |
| Profile depth | 63mm Invisio | 72mm Invisio+ |
| Maximum glass thickness | 41.5mm Invisio | 62mm Invisio+ |
| Thermal performance | Expected Uw from 1.1 W/m²K Invisio | 0.6 W/m²K Invisio+ |
| Tested scenario | SC2 / SC5 / SC6 structural glass scenarios |
| Tested opening sizes | Up to 5m high, with tested widths up to 12.71m depending on wind load |
GLASS OPTIONS
- Double glazed units
- Insulated glass units up to 41.5mm for Invisio
- High-performance glass units up to 62mm for Invisio+
- Low-E coated glass
- Argon-filled insulated glass units
- Solar control glass
- Laminated glass units
- High-strength interlayers
- Coloured interlayers
- Acoustic damping interlayers
